What's in the box
- 1 x FOTILE EMS9028 chimney hood
- 1 x Ducted hose
- 1 x End cap
- 1 x User manual
- 1 x Warranty card
- 1 x FOTILE GHG78211 builit-in gas hob
- 1 x D size battery
- 1 x user manual
- 1 x warranty card
Product details of FOTILE EMS9028 chimney hood
- Wing-like surround suction plate
- 100-sec turbo system
- Illuminated side touch control
- Rounded edge
- 3 speed fan control
- Noise level <57dB
- Unrestrained Air flow 1300 m³/h
Patented Wing-like Surround Suction Plate
The Innovative Surround Suction Technology increase the smoke accumulation area of the FOTILE W to ensure that grease and smoke cannot escape.
100-sec Turbo System
Increase extraction power to 1,300m³/hr, leading grease and smoke out of the kitchen smoothly.
Simply unclasp the 4 buckles to remove suction plate before cleaning. The coated material makes cleaning a breeze.
Humanized design gives you a better product experience.
|Material of hood||90cm wide stainless steel with black panel surface design|
|Unrestrained airflow (m3/hr)||1300|
|IEC standard airflow (m3/hr)||1090|
|Max Static Pressure (Pa)||410|
|Noise Level (dB)||57|
|No. of Speeds Fan Control||3|
|Illumination Power in LED (W)||2W x 1|
|Type of hood||Chimney hood|
|Automatic Turbo System||NIL|
|Smart Smoke and Sound Detection||NIL|
|Intelligent Air Management||NIL|
|Delay Off Function||YES|
|Control Mode||Illuminated touch control|
|Type of Filter||Corrugated Filter|
|Dimension W x D x H (mm)||900 x 515 x (520-940)|

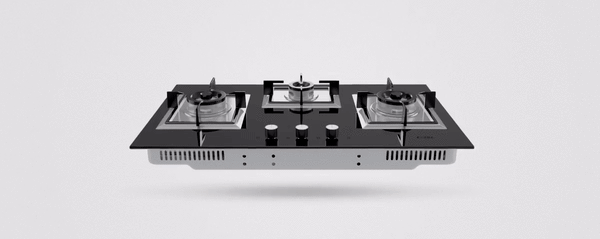

Product details of FOTILE GHG78312 built-in gas hob
- Heat efficiency >60% with 5.0kW heat load
- Instant ignition
- Stable pan support
- Cast Iron grate & tempered glass surface material
- 3 burners with safety ignition pin
- Flame failure device (FFD)
- Heating Load (kW) : L:5.00 M:1.70 R: 5.00

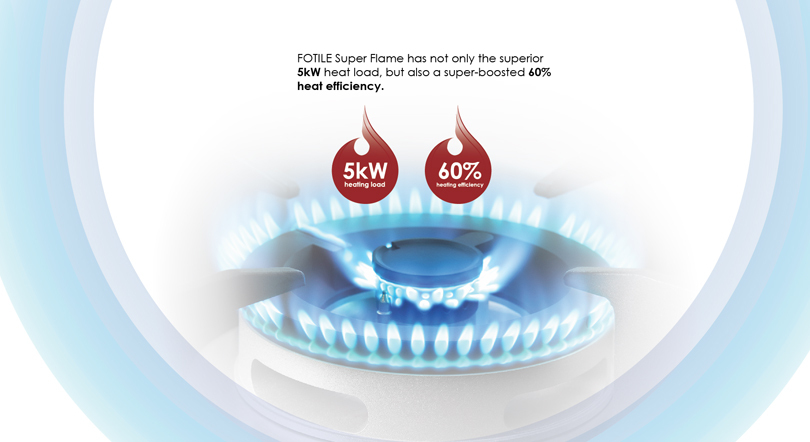

More Than High Flame Power
FOTILE Super Flame has not only the superior 5kW heat load, but also a super-boosted 60% heat efficiency.
Powerful & Efficient
5.0 kW heating load, 60% heating efficiency. Powerful and fast cooking.
6 Core Technologies
Super Flame series supported by 6 core technologies.

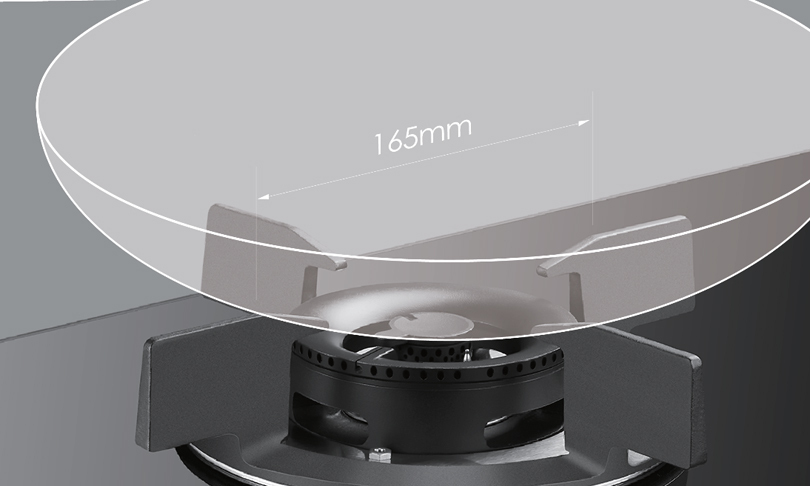

Stable flames. Stable pan support to hold the wok.
12 safety features for a safer cooking experience.
High quality aluminum alloy burner. Long lasting and durable against rust.

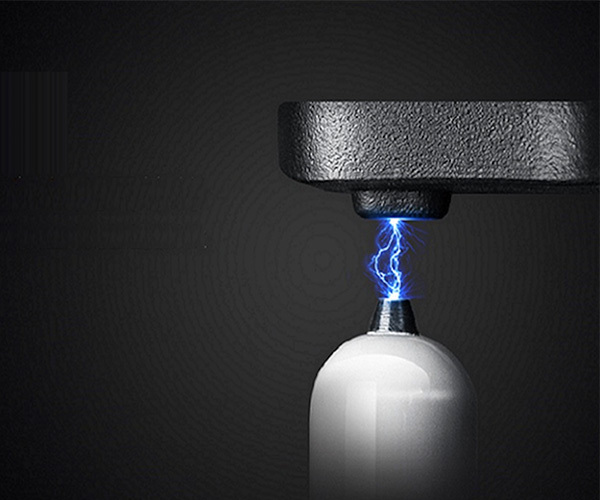

0-second ignition with fast ignition feature.
60% heating efficiency. Saves 20% gas consumption.
|Technology of Hob||Super Flame Technology|
|No of Burners||3|
|Surface Material||Tempered glass|
|Heating Load (kW)||L: 5.00 M: 1.7 R: 5.00|
|Heat Efficiency ≥ 60%||> 60%|
|Flame Failure Device (FFD)||YES|
|Safety Ignition Pin||YES|
|Dimension W x D (mm)||780 x 450|
|Built-in Sizes W x D (mm)||708 x 388|
