What's in the box
- 1 x FOTILE EMS9021-R chimney hood
- 1 x charcoal filter
- 1 x user manual
- 1 x warranty card
- 1 x FOTILE GHG78211 builit-in gas hob
- 1 x D size battery
- 1 x user manual
- 1 x warranty card
Product details of FOTILE EMS9021-R recirculation hood
The Best Hood for your Condominium.

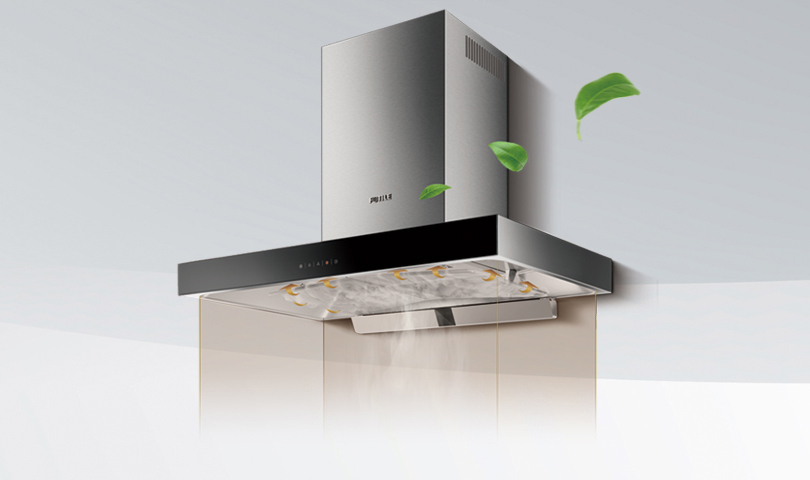

Wing Like Surround Suction Plate Technology
Wing-liked surround suction plate act as a barrier between wok and filter, ensure no oil dripping compare to normal aluminium grease filter. Its Effective capture of Airborne Grease.

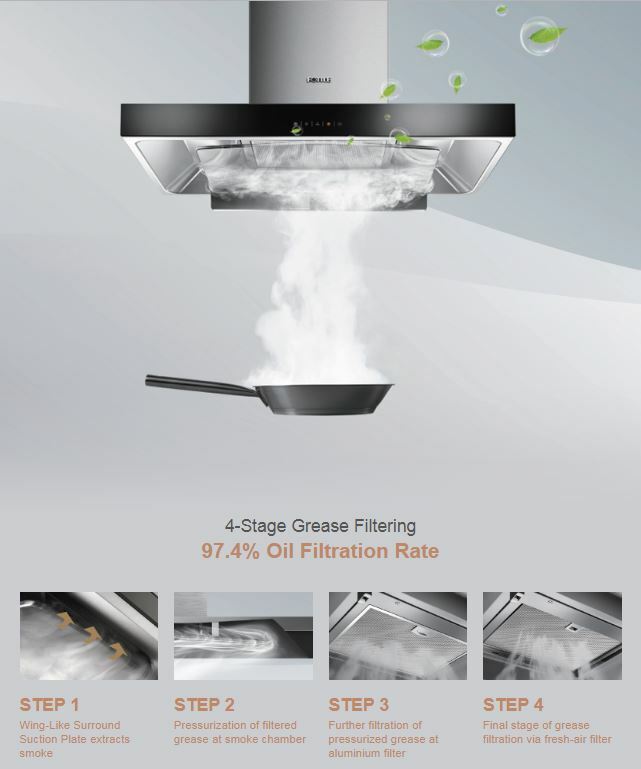

Effective Oil Filtration Rate
Effective Aluminium & Carbon Filter
High Efficiency Filter technology is a must in any recirculation hood to maintain a clean and fresh kitchen, otherwise greasy fumes will linger no matter how great the hood's suction power is. Normal recirculation hoods are unable to totally filter airborne grease, as they tend to drift back to the kitchen via the hood's outlet.

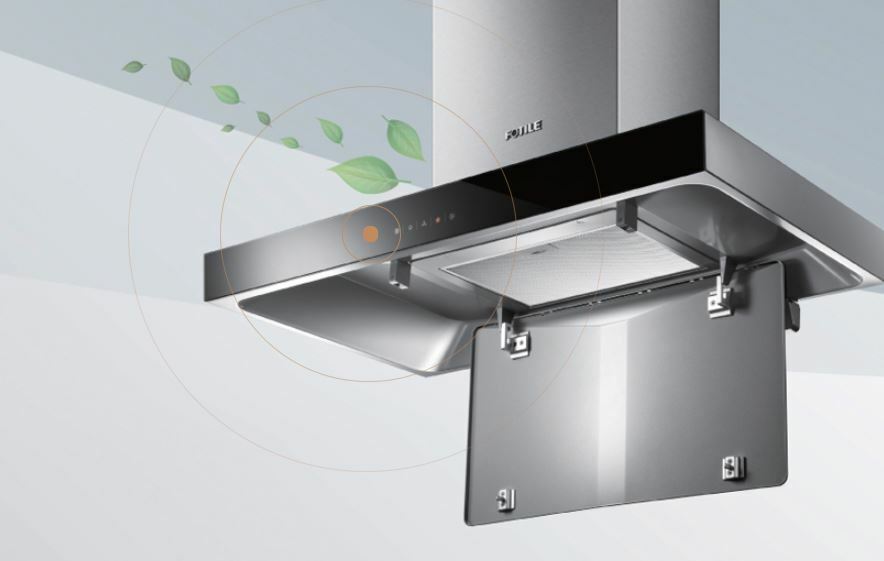

Humanized Design
Filter Replacement Notification. When the hood has operated up to 150 hours, a cleaning signal will be displayed, alert user to change the carbon filter.

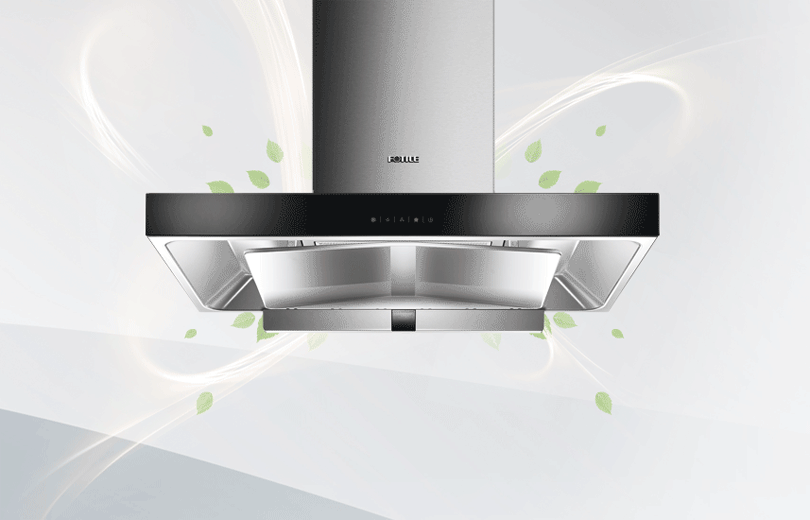

Stylish Modern Outlook
Stylish Modern Outlook to suit your modern Kitchen.
Specifications
| Certification | SIRIM |
| Material of hood | 90cm wide stainless steel surface with black panel design |
| Unrestrained airflow (m3/hr) | 1080 |
| IEC Standard Air Flow (m3/h) | 750 |
| Motor Power (W) | 210 |
| Max Static Pressure (Pa) | 365 |
| Noise Level (dB) | 54 |
| No. of Speeds Fan Control | 2 |
| Illumination Power in LED (W) | 2W x 1 |
| Type of hood | Recycle hood |
| Odor Filtration Rate | NIL |
| Automatic Turbo System | NO |
| Smart Smoke and Sound Detection | NIL |
| Intelligent Air Management | NO |
| Anion Sterilisation | NO |
| 3D Ionized Air Curtain | NIL |
| Gas & Heat Sensor | NIL |
| Delay Off Function | YES |
| Control Mode | Illuminated touch control |
| Type of Filter | Aluminium & carbon filter |
| Special Features | NIL |
| Power Supply | 220V-240V/50-60hZ |
| Dimension W x D x H (mm) | 895 x 525 x (850-945) |
Product details of FOTILE GHG78211 built-in gas hob
- Super Flame Technology
- Heat efficiency >60%
- Safety Ignition pin
- Flame Failure Device (FFD)
- Cast Iron grate & tempered glass surface material
- Low Battery Reminder
- Removable washing cup
- Heating Load (kW) : L:5.00 R:5.00
Integrated Anti-Corrosion Burner
The material of the burner is cast iron, specially treated with anti-corrosion processing. The integrated burner has the same co-efficient of expansion, it won't be deformed by temperature change, so it's completely sealed and safe.
Grading Ring Technology
Grading Ring Technology Burner help relieve gas momentum, balance the gas pressure and mix gas, so the combustion is more even flame & stable.
Patent No. 201220321289.3
40° Flame angle burning Tech
This energy-saving and environmentally friendly feature provides the widest contact area between the flame and the cookware to increase the burning efficiency of the hob.
Other Features
Specifications| Certification | SIRIM |
| Technology of Hob | Super Flame Technology |
| No of Burners | 2 |
| Surface Material | Tempered glass |
| Pan Support | YES |
| Gas Type | LPG |
| Heating Load (kW) | L: 5.00 R: 5.00 |
| Heat Efficiency ≥ 60% | > 60% |
| Fast Ignition | YES |
| Flame Failure Device (FFD) | YES |
| Safety Ignition Pin | YES |
| Dimension W x D (mm) | 780 x 450 |
| Built-in Sizes W x D (mm) | 650-710 x 350-400
|
