What's in the box
- 1 x FOTILE V PRO JQG9009T chimney hood
- 1 x ducted hose
- 1 x end cap
- 1 x user manual
- 1 x warranty card
Product details of FOTILE V PRO JQG9009T chimney hood

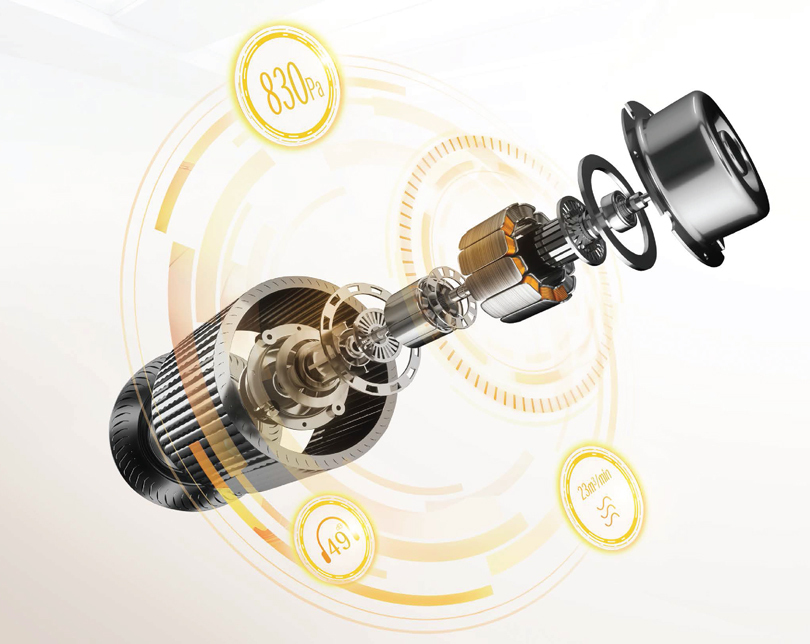

Innovative Direct-current Inverter
Stronger & More Powerful - 830Pa
DC inverter technology & auto turbo system achieves air pressure up to 830Pa and 1,850m3/hr powerful airborne grease extraction.
Cleaner - A Grease-free Kitchen
Enhanced core power paired with 3-layer centrifugal filtration technology keeps both kitchen and hood clean.
Quieter - 44dB
DC inverter technology paired with FOTILE's exclusive Silence+ Technology keeps noise level as low as 44dB.

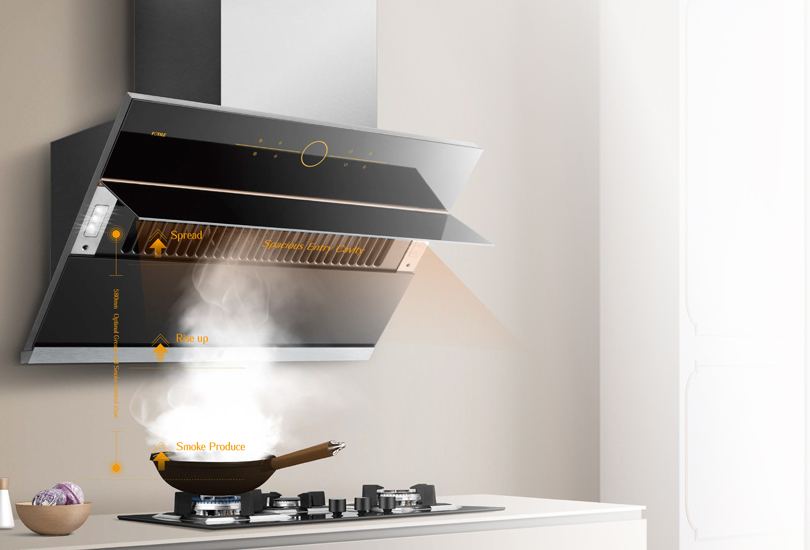

Optimal Grease and Smoke Control Zone
The Optimal Grease and Smoke Control Zone is at 580mm above the hob.
This is where the hood can lock grease and smoke down completely before they start to spread.
Wider Chamber Entrance
FOTILE V PRO's ability to handle multiple gas hobs more effortlessly than normal hoods comes from its wider chamber entrance, which has an average air inlet width of 20mm that allows it to capture the flow of airborne grease from every corner.

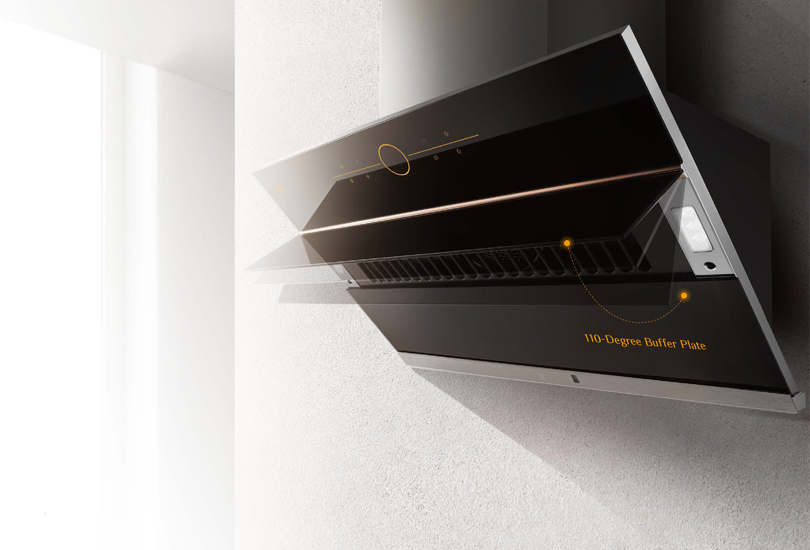

110-Degree Buffer Plate
Obtuse-angled smoke compression technology pressurizes rising airborne grease to prevent it from spreading. The 160mm ultra-wide buffer plate further bolsters smoke defense.

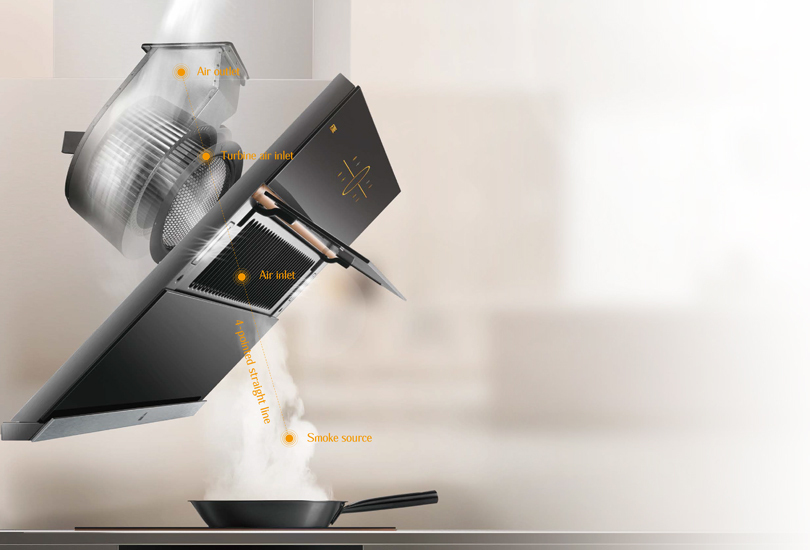

Airborne Grease Highway
Airborne grease passes through a 4-pointed straight line leading grease and smoke from the chamber entrances to the exhaust in one straight line with zero to minimal obstruction.
Intelligent Suction and Extraction System
Intelligent Air Management
The intelligent Air Management automatically detects harmful gases in the air before ventilating and purifying the air to keep your kitchen fresh, even when you're not cooking or in the kitchen.
Auto Turbo System
Increases extraction power automatically when resistance is detected.

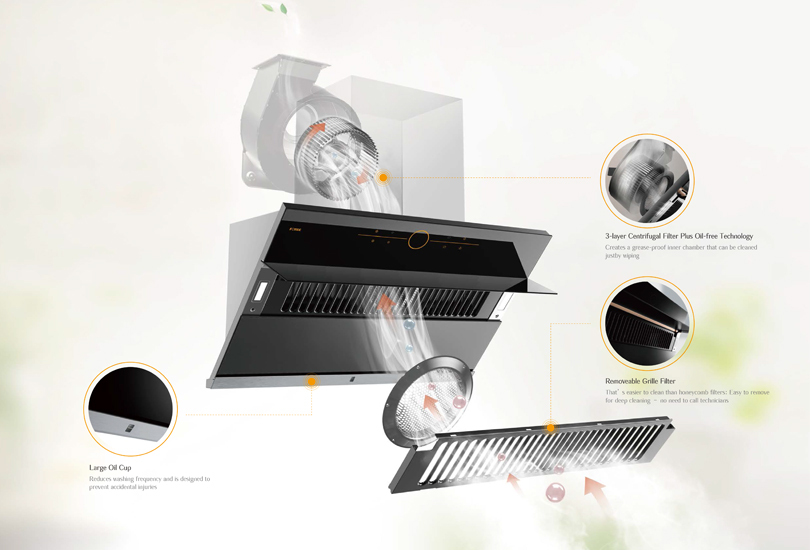

Innovative Oil-Free Technology
Making cleaning a breeze.
Specifications
| Certification | CB, SAA |
| Material of hood | 90cm wide tempered glass surface |
| Unrestrained Air Flow (m3/h) | 1850 |
| IEC Standard Air Flow (m3/h) | 1400 |
| Max Static Pressure (Pa) | 830 |
| Noise Level (dB) | 49 |
| No. of Speeds Fan Control | 3 |
| Illumination Power in LED (W) | 1.5W x 2 |
| Type of hood | Chimney hood |
| Automatic Turbo System | YES |
| Smart Smoke and Sound Detection | NIL |
| Intelligent Air Management | YES |
| Delay Off Function | NIL |
| Control Mode | Illuminated 'O' touch control |
| Type of Filter | Double layer filter |
| Special Features | NIL |
| Power Supply | 220V-240V/50-60hZ |
| Dimension W x D x H (mm) | 900 x 440 x (610-1290) |
