- 1 x FOTILE EMG9035 chimney hood
- 1 x ducted hose
- 1 x end cap
- 1 x user manual
- 1 x warranty card
Product details of FOTILE EMG9035 chimney hood
Wave Goodbye to Cooking Smoke
Goodbye to cooking smoke with a wave of hand. Wave to switch on or switch off the hood.
Wider Grease and Smoke Control Zone
The Innovative Surround Suction Technology increase the smoke accumulation area of the FOTILE W to 0.12m² to ensure that grease and smoke cannot escape from any of the 4 sides of the hood.

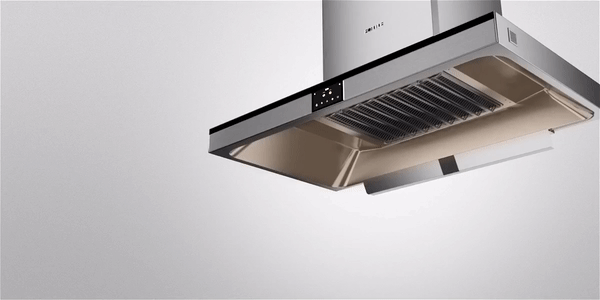

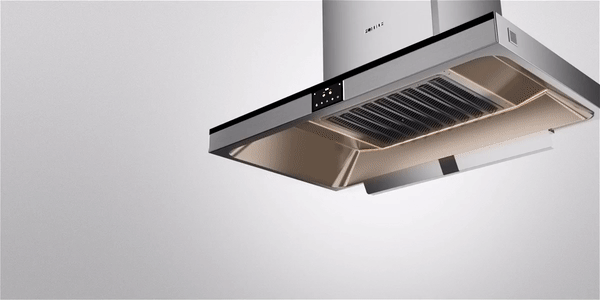

Full Acceleration
The innovative M-shaped canopy is paired with the Wing-like Surround Suction Plate, which has a 3° tilt angle, to create a narrow passage in between two wide openings for a faster and more efficient extraction.

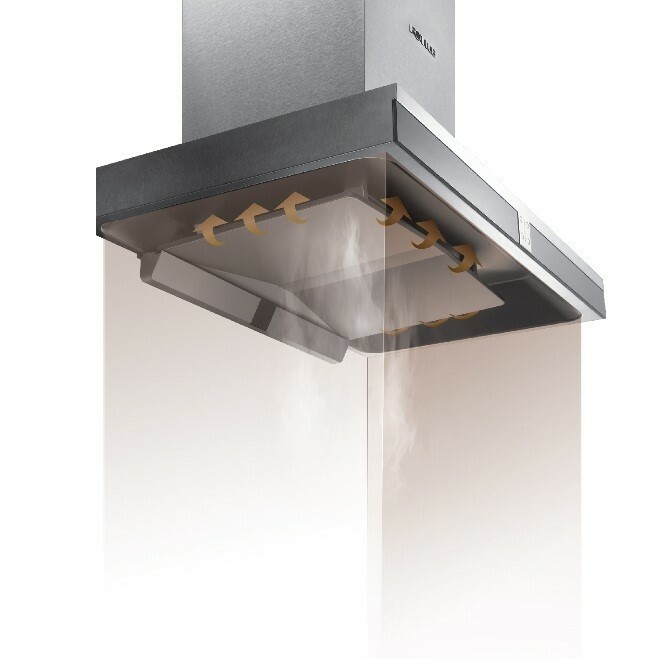

Multiple Smoke Inlet Paths
FOTILE W Wing-liked Surround Suction Plate achieves a multi-path, simultaneous grease and smoke extraction with a larger amount of smoke intake per unit.
Intelligent Suction and Extraction System
Auto Turbo System
Increases extraction power automatically when resistance is detected.

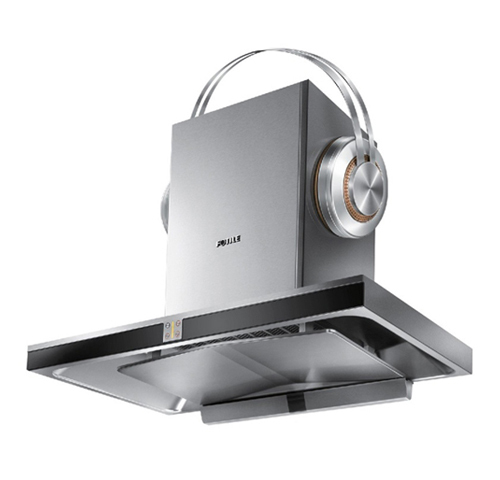

Quiet Operation
The noise level of the FOTILE W while in operation is only 48dB. Now you can keep an ear out for your children even when you cook!

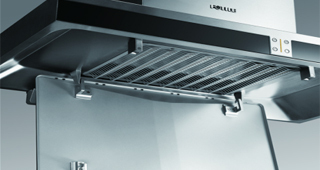

Easy to Dismantle & Clean
Easy to Dismantle
Easy to dismantle with just 4 buckles.
Easy Clean
Easy clean with wider surface.
Specifications
| Certification | CB, SIRIM |
| Type of motor | Brushless DC inverter motor |
| Material of hood | 90cm wide stainless steel with black panel surface design |
| Unrestrained airflow (m3/hr) | 1950 |
| IEC Standard Air Flow (m3/h) | 1420 |
| Motor Power (W) | 258 |
| Max Static Pressure (Pa) | 880 |
| Noise Level (dB) | 48 |
| No. of Speeds Fan Control | 3 |
| Illumination Power in LED (W) | 2W x 1 |
| Type of hood | Chimney hood |
| Automatic Turbo System | YES |
| Smart Smoke and Sound Detection | NIL |
| Intelligent Air Management | NIL |
| Anion Sterilisation | NIL |
| Delay Off Function | YES |
| Control Mode | Touch + wave |
| Type of Filter | Corrugated Filter |
| Special Features | NIL |
| Power Supply | 240V/50hZ |
| Dimension W x D x H (mm) | 895 x 512 x 582 |
