What's in the box
- 1 x FOTILE AMG9007-i chimney hood
- 1 x ducted hose
- 1 x end cap
- 1 x user manual
- 1 x warranty card
Product details of FOTILE AMG9007-i chimney hood

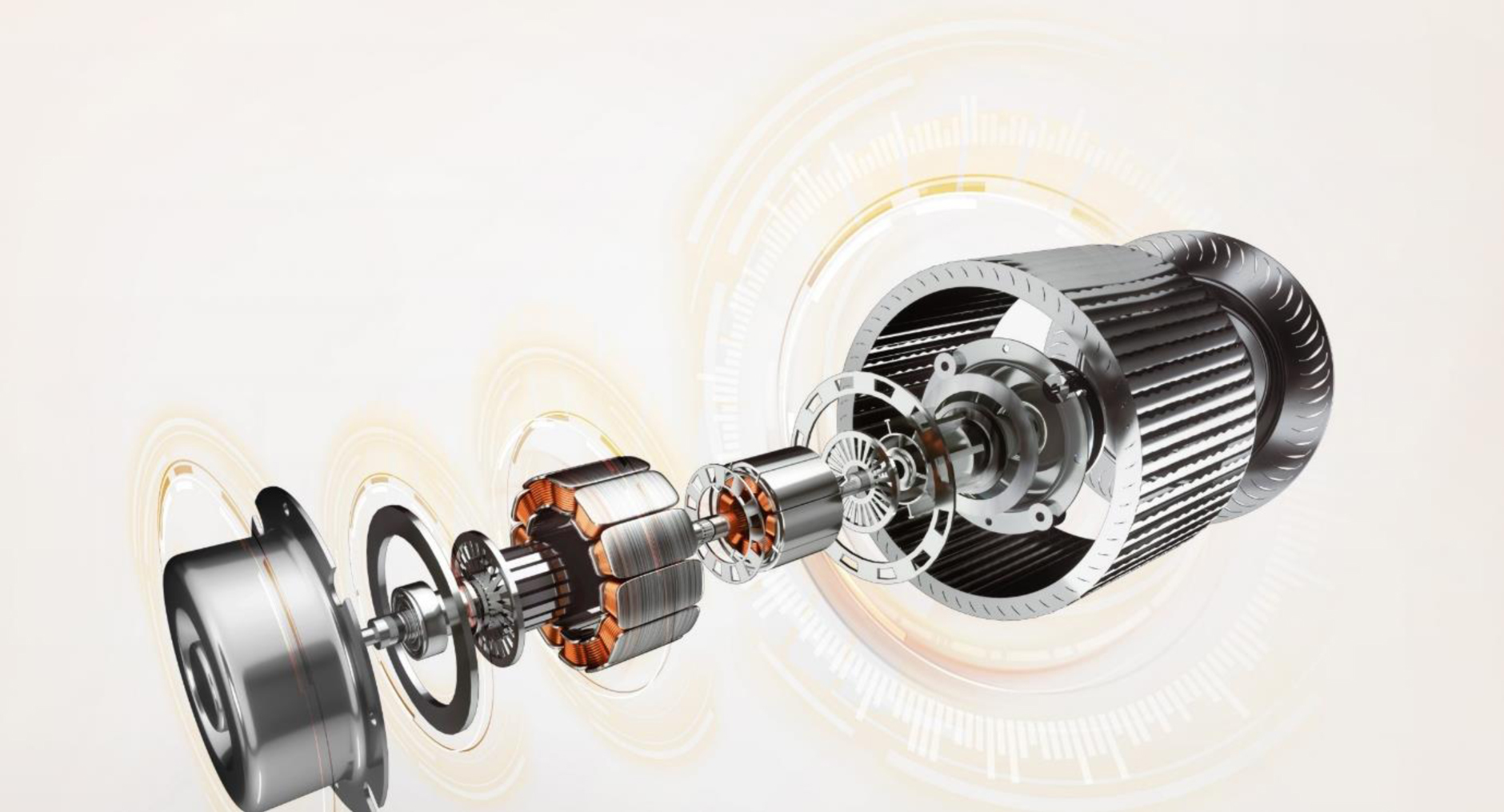

Stronger - Brushless Direct-current Inverter (BLDC)
More Powerful, Better Efficiency - The Brushless Direct Current (BLDC) motor has a maximum static pressure of 990 Pa that handles long and winding air ducts and complicated installation spaces with ease.
Its maximum air flow of 1930m3/h refreshes all the air in a kitchen within 1.5 minutes, at the same time, keeping noise level as low as 42dB.
Closer - Closer Extraction From Cooking Smoke
Closer Extraction - Only 335mm from the stove - almost half the distance of a traditional range hood - the FOTILE X-Series captures cooking smoke straight at the source.
Wide Suction Plate - Its 900mm-wide suction plate intercepts cooking smoke and extracts it before it spreads.
Faster - Cooking Smoke Highway
Rear Extraction Design - The rear extraction design allows the extraction motor to rotate 180°, actively reducing the distance of cooking smoke and extracting it in a straight path.
Nautilus Air Passageway reduces wind resistance and noise. With the 3-point Extraction System, cooking smoke is collected, extracted and removed in a single uninterrupted path.
Smarter - Smart Air Distribution
Intelligent Air Distribution - With a touch of a button, the FOTILE X-Series can focus its extraction power to either side of the hood, depending on where cooking smoke is concentrated. From stewing to stir-frying, the FOTILE X-Series concentrates extraction power to extract cooking smoke while minimizing noise for a more peaceful cooking experience.
Left power diverter: Diverts 70% of extraction power to the left side of the hood
Right power diverter: Diverts 70% of extraction power to the right side of the hood
When this function is activated, air pressure can increase by up to 50% on either side.
Smart Smotion (Smoke + Motion) Detection
Turn the hood on and off with the wave of a hand
Easy To Clean
All-new filter-free design with glass frame, just wipe to restore it to its original lustre.
Low Noise Level
BLDC motor with multiple noise-reduction technologies. Noise level produced is as low as 42dB.
|Type of motor||Brushless DC Inverter Motor with Microchip Technology|
|Material of hood||90cm wide tempered glass surface|
|Unrestrained airflow (m3/hr)||1930|
|IEC Standard Air Flow (m3/h)||1390|
|Motor Power (W)||258|
|Max Static Pressure (Pa)||990|
|Noise Level (dB)||Low 42, standard 46, turbo 55|
|No. of Speeds Fan Control||3|
|Illumination Power in LED (W)||10 W (3 levels - adjustable)|
|Type of hood||Chimney hood|
|Automatic Turbo System||YES|
|Smart Smoke and Sound Detection||NIL|
|Intelligent Air Management||NIL|
|Delay Off Function||YES|
|Control Mode||Touch + wave|
|Type of Filter||Filter free|
|Special Features||Smart Air Diverter|
|Dimension W x D x H (mm)||897 x 325 x 1060|
